[stork-users] Removing a node and re-adding it back causes a certificate error

Marek Hajduczenia mxhajduczenia at gmail.com
Tue May 7 14:23:19 UTC 2024


The certs have been regenerated on the node, for what it is worth

root at server-kea-node1:/var/lib/stork-agent# ls -lah certs/
total 20K
drwx------ 2 stork-agent root        4.0K May  7 11:47 .
drwxr-xr-x 4 stork-agent root        4.0K May  6 19:08 ..
-rw------- 1 stork-agent stork-agent  664 May  7 11:47 ca.pem
-rw------- 1 stork-agent stork-agent  656 May  7 11:47 cert.pem
-rw------- 1 stork-agent stork-agent  241 May  7 11:47 key.pem

but it seems that the Stork Server side is holding onto old certs? Not sure
where they would be stored - likely in the backend DB, but I do not want to
delete things at random.

Regards

Marek

On Tue, May 7, 2024 at 5:56 AM Marek Hajduczenia <mxhajduczenia at gmail.com>
wrote:

> Hi Slawek,
>
> That has not solved my problem. I went through the following process
>
> 1. Remove the previous registration for .130 machine at Stork GUI (Action
> > Remove)
> 2. Remove all content from /var/lib/stork-agen/certs and
> /var/lib/stork-agen/tokens
> 3. Re-run registration
>
> root at server-kea-node1:/var/lib/stork-agent/tokens# sudo su stork-agent -s
> /bin/sh -c 'stork-agent register --server-url http://172.17.129.251:8080'
> >>>> Server access token (optional):
> >>>> IP address or FQDN of the host with Stork Agent (for the Stork Server
> connection) [server-kea-node1]: 172.17.129.130
> >>>> Port number that Stork Agent will listen on [8080]:
> INFO[2024-05-07 11:47:14]         register.go:81    There are no agent
> certificates - they will be generated.
> INFO[2024-05-07 11:47:14]         register.go:406
> =============================================================================
>
> INFO[2024-05-07 11:47:14]         register.go:407   AGENT TOKEN:
> B777710F0547C3EA237002537E4B18202F888F4D0F6C2C00BA105167DE1688CE
> INFO[2024-05-07 11:47:14]         register.go:408
> =============================================================================
>
> INFO[2024-05-07 11:47:14]         register.go:411   Authorize the machine
> in the Stork web UI
> INFO[2024-05-07 11:47:14]         register.go:425   Try to register agent
> in Stork Server
> INFO[2024-05-07 11:47:14]         register.go:262   Machine registered
>
> INFO[2024-05-07 11:47:14]         register.go:283   Stored agent-signed
> cert and CA cert
> INFO[2024-05-07 11:47:14]             main.go:215   Registration completed
> successfully
>
> 4. I am back where I was
>

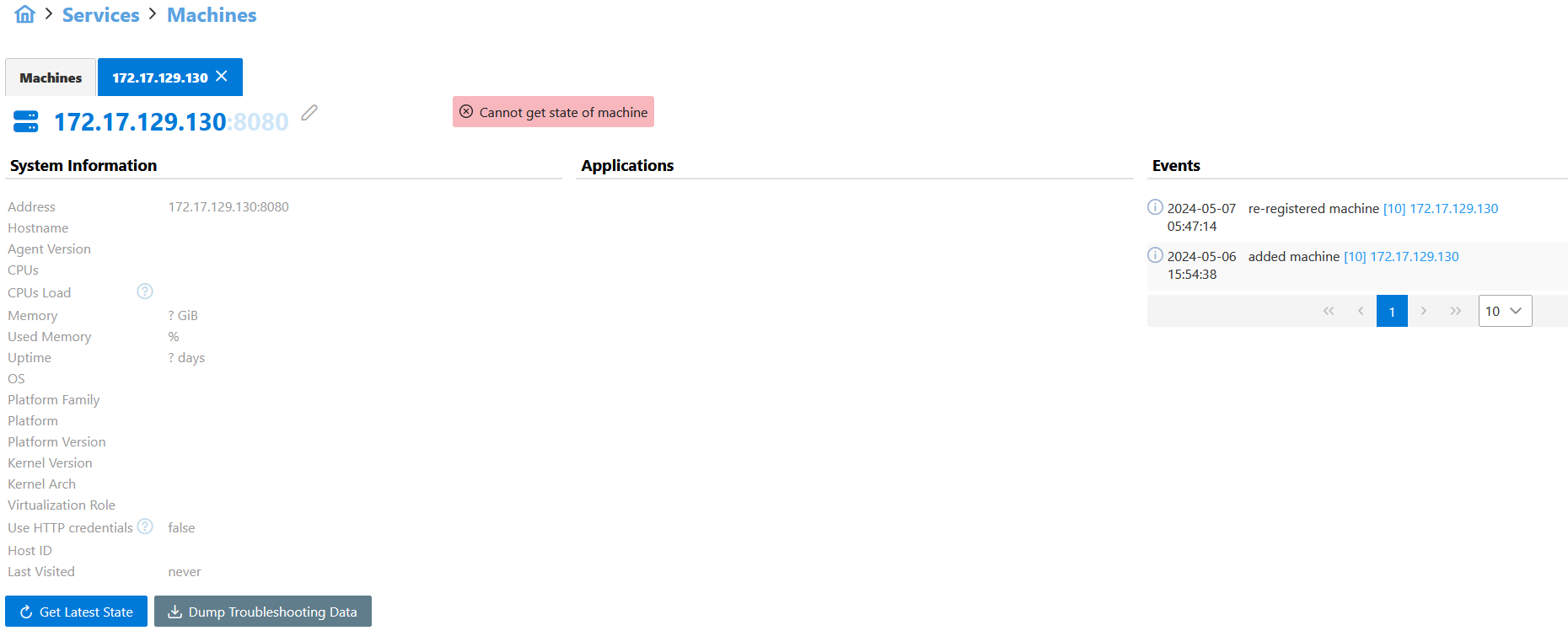

> [image: image.png]
>
> I did restart the local Stork agent but that did not change anything
>
> root at server-kea-node1:/var/lib/stork-agent/tokens# service
> isc-kea-ctrl-agent restart
> root at server-kea-node1:/var/lib/stork-agent/tokens# service
> isc-kea-ctrl-agent status
> ● isc-kea-ctrl-agent.service - Kea Control Agent
>      Loaded: loaded (/lib/systemd/system/isc-kea-ctrl-agent.service;
> enabled; vendor preset: enabled)
>      Active: active (running) since Tue 2024-05-07 11:50:16 UTC; 3s ago
>        Docs: man:kea-ctrl-agent(8)
>    Main PID: 10543 (kea-ctrl-agent)
>       Tasks: 5 (limit: 9343)
>      Memory: 1.4M
>         CPU: 7ms
>      CGroup: /system.slice/isc-kea-ctrl-agent.service
>              └─10543 /usr/sbin/kea-ctrl-agent -c
> /etc/kea/kea-ctrl-agent.conf
>
> May 07 11:50:16 server-kea-node1 systemd[1]: isc-kea-ctrl-agent.service:
> Deactivated successfully.
> May 07 11:50:16 server-kea-node1 systemd[1]: Stopped Kea Control Agent.
> May 07 11:50:16 server-kea-node1 systemd[1]: isc-kea-ctrl-agent.service:
> Consumed 48.595s CPU time.
> May 07 11:50:16 server-kea-node1 systemd[1]: Started Kea Control Agent.
>
> For what is worth, the message in the logs has changed
>
> May  7 11:54:39 server-kea-control stork-server[719]: time="2024-05-07
> 11:54:39" level="info" msg="Completed pulling lease stats from Kea apps:
> 0/1 succeeded" file="      statspuller.go:71   "
> May  7 11:54:39 server-kea-control stork-server[719]: time="2024-05-07
> 11:54:39" level="warning" msg="rpc error: code = Unavailable desc =
> connection error: desc = \"error reading server preface: remote error: tls:
> bad certificate\"" file="          manager.go:124  " agent="
> 172.17.129.130:8080"
> May  7 11:54:39 server-kea-control stork-server[719]: time="2024-05-07
> 11:54:39" level="warning" msg="Failed to get state from the Stork agent;
> the agent is still not responding" file="           grpcli.go:326  " agent="
> 172.17.129.130:8080"
> May  7 11:54:39 server-kea-control stork-server[719]: time="2024-05-07
> 11:54:39" level="warning" msg="failed to get state from agent
> 172.17.129.130:8080: grpc manager is unable to re-establish connection
> with the agent 172.17.129.130:8080: rpc error: code = Unavailable desc =
> connection error: desc = \"error reading server preface: remote error: tls:
> bad certificate\"" file="      statepuller.go:247  "
>
> Not sure whether it for the better or worse
>
> Regards
>
> Marek
>
> On Tue, May 7, 2024 at 4:06 AM Slawek Figiel <slawek at isc.org> wrote:
>
>> Hello Marek!
>>
>> Stork server reports that the agent introduced itself with a "bad
>> certificate." Several reasons may cause it. I think you should remove
>> the existing cert files and re-register the agent. Please do the
>> following steps:
>>
>> 1. On the agent machine, remove the files in the `/var/lib/stork-agent`
>> directory (you need to remove all files from the `certs` and `tokens`
>> subdirectories)
>> 2. If you manually registered the agent (by the `register` command, you
>> need to call it again and restart the agent. If you used the
>> self-registration flow, just restart the agent.
>> 3. Open the Stork UI, go to the machines list, switch to the
>> "Unauthorized" tab, and re-authorize the agent.
>>
>> I hope it'll solve your problem.
>> Don't hesitate to ask for more details if you have any questions.
>>
>> Regards,
>> Slawek Figiel
>>
>> On 07/05/2024 00:05, mxhajduczenia at gmail.com wrote:
>> > Dear Forum,
>> >
>> > I had two nodes added to Stork: .130 and .131 and they were working
>> > correctly. Node .130 had a kernel failure due to changes I was trying
>> to
>> > apply and I did not make a copy, unfortunately. Long story short, I had
>> > to re-install node .130, and then I wanted to add it back to Stork
>> >
>> > No matter what I do, I am getting the error shown above, i.e., Cannot
>> > get state of machine.
>> >
>> > Syslog review shows only one error message following two warning
>> messages.
>> >
>> > May  6 21:58:38 server-kea-control stork-server[719]: time="2024-05-06
>> > 21:58:38" level="warning" msg="rpc error: code = Unavailable desc =
>> > connection error: desc = \"error reading server preface: remote error:
>> > tls: bad certificate\"" file="          manager.go:124  "
>> > agent="172.17.129.130:8080"
>> >
>> > May  6 21:58:38 server-kea-control stork-server[719]: time="2024-05-06
>> > 21:58:38" level="warning" msg="Failed to get state from the Stork
>> agent;
>> > the agent is still not responding" file="           grpcli.go:326  "
>> > agent="172.17.129.130:8080"
>> >
>> > May  6 21:58:38 server-kea-control stork-server[719]: time="2024-05-06
>> > 21:58:38" level="warning" msg="failed to get state from agent
>> > 172.17.129.130:8080: grpc manager is unable to re-establish connection
>> > with the agent 172.17.129.130:8080: rpc error: code = Unavailable desc
>> =
>> > connection error: desc = \"error reading server preface: remote error:
>> > tls: bad certificate\"" file="      statepuller.go:247  "
>> >
>> > I suspect that the TLS certificate does to get cleared when the machine
>> > is removed and a machine with the same IP address is re-added.
>> >
>> > I did not find a remedy for it for now and I do not fancy a complete
>> > re-install of Stork if I can avoid it.
>> >
>> > Any suggestions on how to fix it?
>> >
>> > Regards
>> >
>> > Marek
>> >
>> >
>> --
