Multi Master/Primary Authoritative DNSSEC DNS Nameserver With Synced/Replicated COMMON Dir/Vol For BIND
Terik Erik Ashfolk
aterik at outlook.com
Fri Sep 27 21:53:48 UTC 2024

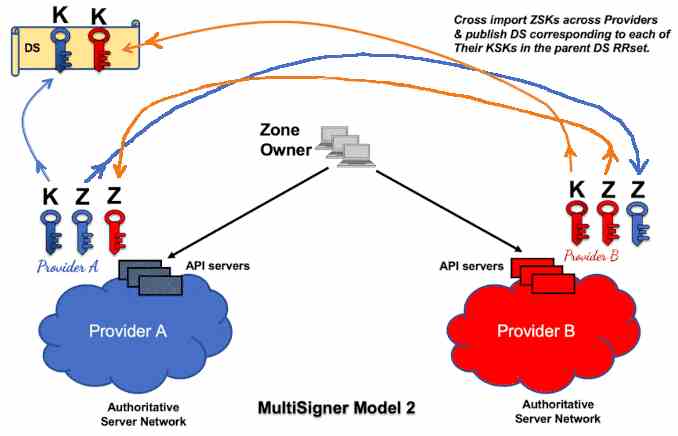

According to the page
https://blog.apnic.net/2021/08/25/multi-signer-dnssec-models/
in MODEL 2.
I added an improved image as attachment.
<img alt="ZSK-signing" src="cid:ImportZSK-PublishDSofKSK.jpg" />
MULTI-ZSK-SIGNING IS ONE OF THE SOLUTION, and appears to be
suitable for my case.
So, multi-signing with ZSKs from multiple nameservers would have
worked,
when nameservers were using separate "zones" & "keys" folder,
I needed to sign n1's zone file with n2's ZSK & with n3's ZSK.
I needed to sign n2's zone file with n1's ZSK & with n3's ZSK.
I needed to sign n3's zone file with n1's ZSK & with n2's ZSK.
Because 3 nameservers are using SYNCED/REPLICATED shared
directories & files,
so each ZSK & KSK are available to other nameservers.
for "key-directory"
n1 using "/mnt/vol/v1/etc/bind/n1/keys"
n2 using "/mnt/vol/v1/etc/bind/n2/keys"
n3 using "/mnt/vol/v1/etc/bind/n3/keys"
and shared common directory for BIND keys is
"/mnt/vol/v1/etc/bind/keys"
and shared directory is
"/mnt/vol/v1"
is there an option in BIND, that can monitor+enable additional ZSK
signing from new ZSK key from other namerservers for same domain ?
if not, please add this as new feature in BIND.
if BIND itself cannot do the monitoring + multi-ZSK-signing now,
then, HOW can i monitor the ".../bind/n1/keys" (or
".../bind/n2/keys" or ".../bind//n3/keys" or ".../bind/keys" )
sub-dirs under shared-directory and find that BIND has began to use
a new ZSK key ?
or HOW can i get a signal from BIND in each nameserver ? that, BIND
has began to use a new ZSK key ?
so-that, i can trigger/run another script in each nameserver (which
added new ZSK key) to begin signing my domain's zone file in other
2 nameservers with the new ZSK.
example : if n1 added a new ZSK for "example.com" domain, then a
"new-zsk-key-monitoring-script.sh" script will create 2 files
"signal-n2-ExampleCom-MZS-zskNUMBER.txt"
"signal-n3-ExampleCom-MZS-zskNUMBER.txt"
in the shared-bind-directory : "/mnt/vol/v1/etc/bind/keys".
Then "monitor-for-signal-file.sh" script running in n2 & n3, will
get that signal, & run "multi-ZSK-sign-script.sh" to mulit ZSK signing.
Thanks in advance.
Erik.
Erik T Ashfolk.
On 9/26/24 7:26 PM, TErik Ashfolk wrote:
> Hello BIND Community.
>
> Looking forward to your suggestions, advises on setup DNSSEC
> enabled zones on multiple master/primary authoritative DNS server
> (Nameserver) with synced/replicated common shared directories/volume.
>
>
> Please skip the section(s) that you dont need to read/scan,
>
> & goto the QUESTIONS , the last section.
>
>
> OBJECTIVES (END-RESULT):
>
> Trying to achieve HA (High-Availability <https://en.wikipedia.org/
> wiki/High_availability>), so-that, as long as 1 master/primary is
> up/running, then my domains are still available to world, and
> allowing users to obtain DNSSEC verified domain-name to IP-address
> resolving, etc from BIND DNS server services.
>
>
>
> RESOURCES:
>
> • Servers : rented 3 servers on 3 locations from different server
> providers.
>
> • Domain : I have multiple domains from domain providers
> (registrar) . Here i will use "example.com"
>
> • Each server has 1 IPv4-address, 1 IPv6-address.
>
> • Domain provider's "Use your own Nameserver" is pointed to 3
> hostnames in 3 nameservers : n1.example.com ( 192.10.2.11 ,
> 2001:db8:1::1 ) , n2.example.com ( 198.51.100.12 ,
> 2001:db8:2::2 ) , n3.example.com ( 203.0.113.13 , 2001:db8:3::3 )
> IP-addresses.
>
> • Each IP-adrs has it's RDNS setup done, to correspond & match with
> nameserver's hostname.
>
> • Using Debian GNU/Linux 12 (bookworm) OS in each server. ( Server
> operator can use any other OS, its their choice/preference. ) ( By
> the way, Debian GNU/Linux is base of Ubuntu Linux, kind of similar
> to: RedHat Enterprise GNU/Linux is base of Fedora Linux. )
>
> • Using ISC BIND9 (9.18.0 , specifically now : 9.18.28) DNS server
> software, in each server. ( Server operator can use any other DNS
> server, its their choice/preference. )
>
>
> ABOUT FILE/DIRECTORY REPLICATION:
>
> • For directories & files replication/sync purpose, using Gluster
> software (1 <https://en.wikipedia.org/wiki/Gluster>,2 <https://
> docs.gluster.org/en/latest/>,3 <https://serverfault.com/
> a/1165339/217110>,4 <https://www.howtoforge.com/how-to-install-
> glusterfs-on-debian-12/>). ( There are many other choices for
> server operators:Multi-Master Replicaiton <https://
> en.wikipedia.org/wiki/Multi-master_replication>,List <https://
> en.wikipedia.org/wiki/List_of_cluster_management_software>), its
> their own choice what suits best/works for their need/purpose.
>
> • When any file/directory changes ( i.e: in "n1" server ) , then
> the replication/sync software that is installed/monitoring , will
> nearly immediately or within few seconds, begin to make same
> changes to same file/dir in server-operator's other servers ( n2 ,
> n3 ), that are member of replication/sync volume/directory. These
> replication software uses time-server to have accurate time.
> Whichever edit/creation/deletion/modification is done last, that
> takes priority & duplicated/replicated/synced.
>
>
>
> SHARED/COMMON STORAGE/VOLUME/DIRECTORY:
>
> • I created a large file ("data-s1.img"), ~ 300 MB in size, inside
> root-partition , at "/storage/s1/data-s1.img" . Formatted with XFS
> filesystem creation/make tools . Attached large-file into a loop
> block device . Mounted it in "/data/s1" directory . Created a
> systemd service "mount-storage.service" in Debian to do previous
> steps one after another, so-that it can succeed in mounting during
> boot , (as "/etc/fstab" was not suitable for this purpose) . Others
> can create/use a 2nd partition in same storage drive (i.e: "/dev/
> sda2") or add another storage drive (i.e: "/dev/sdb") in server .
> Others can use a script (or "/etc/fstab") during boot to mount, etc.
>
> • after above steps, replication software (Gluster) was used to
> create replication volume "v1" inside the storage-mount-point ("/
> data/s1") , so it became "/data/s1/v1" . i configured gluster to
> enable SSL/TLS based secure connection for replication process.
> Gluster also needs user to mount the volume as "glusterfs" type
> mount-point to monitor data r/w & replicate, & its done in : "/mnt/
> vol/v1" mount-point of volume "v1" . Followed stepshere <https://
> serverfault.com/a/1165339/217110>(& changed file/dir names).
>
> • the files+dirs under "/mnt/vol/v1/" is replicated/synced in each
> server, available/accessible in each server, in same location, has
> exact same contents.
>
> • Created "/mnt/vol/v1/etc/bind" directory for BIND aka named aka
> DNS server aka nameserver software usage. Applied : chgrp bind /
> mnt/vol/v1/etc/bind
>
> • Moved the "zones" dir+files from "/etc/bind", from "n1" server
> into the "/mnt/vol/v1/etc/bind/n1/" directory, & done similar for
> "n2" & "n3" servers . Moved the "keys" dir+files from "/etc/bind",
> from "n1" into the "/mnt/vol/v1/etc/bind/n1" directory, & done
> similar for "n2" & "n3".
>
> • so, "/mnt/vol/v1/etc/bind/keys" & "/mnt/vol/v1/etc/bind/zones"
> folders/directories are COMMON for all servers: "n1", "n2", "n3".
>
> • "n1" using "/mnt/vol/v1/etc/bind/n1/keys" dir & “/mnt/vol/v1/etc/
> bind/n1/zones” dir, so i created symlink inside to point+goto the
> replicated/synced mount-point, command : ln -s "/mnt/vol/v1/etc/
> bind/n1/keys" "/etc/bind/keys" ; ln -s "/mnt/vol/v1/etc/bind/n1/
> zones" "/etc/bind/zones" ;
>
> • "n2" using "/mnt/vol/v1/etc/bind/n2/keys" dir & “/mnt/vol/v1/etc/
> bind/n2/zones” dir . & created symlinks as shown above.
>
> • "n3" using "/mnt/vol/v1/etc/bind/n3/keys" dir & "/mnt/vol/v1/etc/
> bind/n3/zones" dir. & created symlinks as shown above.
>
> • Added permissions in AppArmor "/etc/apparmor.d/local/
> usr.sbin.named" file, for BIND/named, so that BIND/named can use
> "v1" replicated-volume "/mnt/vol/v1" BIND directories : /mnt/vol/
> v1/etc/bind , /mnt/vol/v1/etc/bind/zones , /mnt/vol/v1/etc/bind/
> keys , /mnt/vol/v1/etc/bind/n1/zones , /mnt/vol/v1/etc/bind/n1/
> keys in n1 server ( and i have done similar for n2 & n3 ) . Then
> applied changes with command : apparmor_parser -r /etc/apparmor.d/
> usr.sbin.named
>
> • Also applied or re-checked if the ownership-&-permission (O&P)
> convention used+recommended by BIND/named for directories & files,
> are applied/done on the dirs+files inside the "/mnt/vol/v1/etc/
> bind, etc.
>
>
>
> DNSSEC & DNS:
>
> • Each nameserver has BIND DNS server named daemon software . Each
> BIND need to be Authoritative for my domains ("example.com" ,
> "example2.com", etc) & response back to any DNS servers/clients
> query for my domains & for my subnet's reverse-zone . And each BIND
> DNS server also need to serve/perform as a recursive DNS resolver
> for any queries made into "localhost" ( 127.0.0.1 , ::1 ).
>
> • Followed various related steps as-much-possible from "DNSSEC
> Howto for BIND 9.9+ <https://wiki.debian.org/
> DNSSEC%20Howto%20for%20BIND%209%2E9%2B>” , ISCBIND docs for 9.18.28
> <https://downloads.isc.org/isc/bind9/9.18.28/doc/arm/html/> ( that
> i'm using now while writing this msg ) , etc . Debian OS will
> update BIND in distro’s repo, & then my/op's servers will be
> updated to that version . For next/latest version, goto ISC BIND
> download pagehere <https://www.isc.org/download/>, search for "PDF"
> word, select/click on the HTML / PDF doc version that you want to
> read/follow.
>
> • As each nameserver has different IP-addresses, so i've kept the
> "named.conf", "named.conf.local", "named.conf.options" files in
> the /etc/bind of server itself, for faster loading .
>
> • The "named.conf" file has BIND ACLs, and include directives .
> This file has same content in each server . Has “ acl LocalHostR
> { 127.0.0.1; ::1; } ; LocalHostRv4 { 127.0.0.1; } ; LocalHostRv6
> { ::1; } ; acl BlockedNets { 0.0.0.0/8 ; 192.0.2.0/24 ;
> 224.0.0.0/3 ; 10.0.0.0/8 ; 172.16.0.0/12 ; 192.168.0.0/16 ; } ; acl
> N1-IPv4 { 192.10.2.11; } ; acl N1-IPv6 {2001:db8:1::11; }; ” , etc,
> (remove quote symbols) . ( i added more IPv4 & IPv6 in
> BlockedNetslater ).
>
> • The "named.conf.local" file has forward zones & reverse zones
> declarations : each zone has "type primary;" directive/option set ,
> each zone has "file" directive with file located in replicated
> volume location . Each local zones & each local reverse-zone for
> IP-address) have "allow-query { LocalHostR; };" . My each domain's
> zone (i.e: "zone "example.com" { ... };") declarations, & reverse-
> zone for my own subnet, has "allow-query { any; };" .
>
> •My domain “example.com”zone declaration in “named.local.conf”
> file : “ zone "n1.example.com" { type master ; file "/mnt/vol/v1/
> etc/bind/zones/db.example.com" ; allow-query { any; } ; serial-
> update-method unixtime ; key-directory "/mnt/vol/v1/etc/bind/n1/
> keys" ; dnssec-policy opPolicy ; inline-signing yes ; notify
> no ; }; ” (remove quote symbols) . We allowed query from anyone .
> By the way, i also have a sub-domain zone declared in
> “named.local.conf” file as zone : “ zone "ns.example.com" { … };
> ” , nearly same as “example.com”.
>
> • The "named.conf.options" file has “dnssec-policy
> "opPolicy" { ... };” , "options { ... };" , "logging { ... };"
> sections/declarations . Logging uses the server's "/var/log/named"
> dir ( into "Update_Debug.log" , "Security.log" , "BIND.log" files ).
>
> • The “options { … };” in “named.conf.options” file : “ options
> { recursion yes ; allow-recursion { LocalHostR; } ; allow-query-
> cache { LocalHostR; } ;allow-query-cache-on { LocalHostR; } ;
> allow-query { LocalHostR; } ; allow-recursion-on { LocalHostR; } ;
> empty-zones-enable yes ; blackhole { BlockedNets; } ; allow-
> transfer { none; } ; auth-nxdomain no ; listen-on { N1-IPv4;
> LocalHostRv4; } ; listen-on-v6 { N1-IPv6; LocalHostRv6; }; rate-
> limit { ... }; }; ” (remove quote symbols). We restricted recursion
> by allowing only LocalHostR, not external, not BlockedNets.
>
> • DNS server, for non-dnssec part of DNS related queries &
> responses for domain(s), IPv4-adrs, IPv6-adrs, etc (forward lookup/
> resolve , subnet IP-adrs reverse resolve/lookup ) WORKING FINE ,
> from n1 & n2 & n3 . Authoritative mode is working for my domains .
> And "localhost" inside server can also provide website-name/domain-
> name To IP-address resolve response, to the the local software/
> daemons/clients that are running inside server.
>
> • To ENABLE DNSSEC : i add "dnssec-validation auto;" inside
> "options" inside "named.conf.options" file , i add "key-directory
> "/mnt/vol/v1/etc/bind/n1/keys" ; inline-signing yes;" in "zone
> "example.com" { ... };" in "named.conf.local" file, etc , ( changed
> the "n1" into "n2" for "n2" server, & similarly in n3. )
>
> • For "dnssec-policy" directive about KSK & ZSK cert+key creation,
> usage period, signing, validity, verification, etc , i'm using
> shorter TTL period, etc , so-that dnssec/dns config lines can be
> changed+applied quickly during DNSSEC setup phase : dnssec-policy
> "opPolicy" { ksk lifetime P88D algorithm RSASHA256 ; zsk lifetime
> 22D algorithm RSASHA256 ; dnskey-ttl PT10M ; publish-safety
> P2D ; retire-safety P3D ; purge-keys P3D ; signatures-refresh
> P5D ; signatures-validity P10D ; signatures-validity-dnskey
> P11D ; max-zone-ttl PT30M ; zone-propagation-delay PT1H ; parent-
> ds-ttl PT1H ; parent-propagation-delay PT1H ; nsec3param
> iterations 0 optout yes salt-length 0 ; };
>
>
> Now finally into the
>
> QUESTIONS:
>
> • How can i create 1 KSK key ( in "n1" server first ), for a
> (single) domain ("example.com") and get the DS code from KSK key
> and add that 1 DS in domain-provider ( to send to the TLD ), &
> configure other 2 nameservers ( n2 , n3 ) to use that 1 DS record
> from TLD & use that same/common 1 KSK file from the synced/
> replicated directory, while "type master;" is set for my domain/
> zone in each nameserver ?
>
> ( Using 3 KSK & their 3 DS in domain-provider did not work, created
> error indicators in DNSViz & in "DNSSEC-Annalyzer.VerisignLabs”
> test sites, when each nameserver used separate directories, files, etc.
>
> • if i specify same/COMMON (replicated) dir "/mnt/vol/v1/etc/bind/
> keys" & "/mnt/vol/v1/etc/bind/zones/zonename" inside 3 nameserver's
> “named.conf.local” file domains/zones , Can BIND DNS server add
> their own RRSIG response/lines for DNS records (into same zone
> file) without removing earlier or other nameserver's RRSIG lines
> (unless related ZSK key/period expired) ?
>
> • How do i disable/clean/move/backup earlier DNSSEC keys/usages, &
> setup DNSSEC completely as anew . ( Our zone TTLs are short 7m to
> 1h , (during setup/test phase) , So within 7m to an hour, all
> older-records should be discarded from caches. )
>
>
> Thanks in advance for helpful responses.
>
> Erik.
>
> Erik T Ashfolk.
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ImportZSK-PublishDSofKSK.jpg
Type: image/jpeg
Size: 20737 bytes
Desc: not available
URL: <https://lists.isc.org/pipermail/bind-users/attachments/20240927/b0b68289/attachment-0001.jpg>
More information about the bind-users
mailing list
