[Kea-users] [EXTERNAL] Re: Two questions regarding to kea subnet configuration

Tue May 7 12:06:52 UTC 2024

Hi Marek,

Yes: Services -> Kea Apps -> Click on the Name you are interested in (e.g.,
kea at 127.0.0.1) -> "Raw Configuration"

Thank you,
Darren Ankney

On Tue, May 7, 2024 at 8:00 AM <mxhajduczenia at gmail.com> wrote:

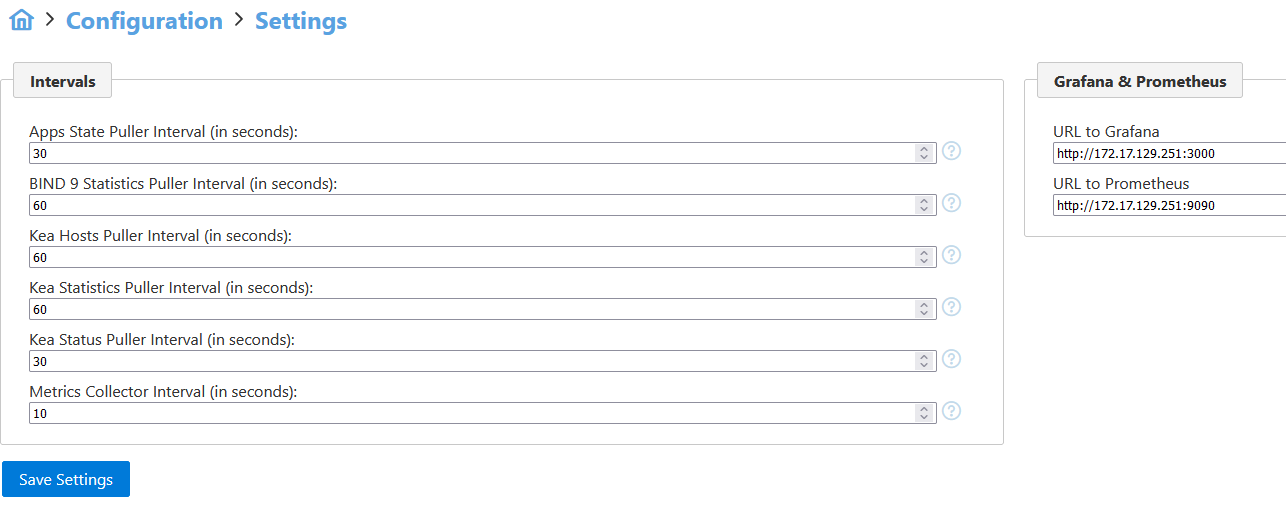

> Settings are pretty underwhelming so I assume that section would be
> somewhere else?
>
>
>
>
>
> -----Original Message-----
> From: Kea-users <kea-users-bounces at lists.isc.org> On Behalf Of Darren
> Ankney
> Sent: Tuesday, May 7, 2024 3:55 AM
> To: Kea user's list <kea-users at lists.isc.org>
> Subject: Re: [Kea-users] [EXTERNAL] Re: Two questions regarding to kea
> subnet configuration
>
>
>
> Hi Marek,
>
>
>
> > and just wish they were visible in Stork
>
>
>
> They sort of are but probably not in the way you are hoping.  There is an
> area where you can view the raw Kea configuration.  They would be shown
> there.
>
>
>
> Thank you,
>
> Darren Ankney
>
>
>
> On Mon, May 6, 2024 at 10:27 PM Marek Hajduczenia <mxhajduczenia at gmail.com>
> wrote:
>
> >
>
> > I did look at it but it is a highly ineffective way of doing such
>
> > classification. I do not have much commonality between individual
>
> > subnets and adding extra complexity of tracking them via client
>
> > classes is not worth the effort IMHO. I will see what I can do with
>
> > comments, and just wish they were visible in Stork, via – perhaps, a
>
> > customizable field. Right now, having several [1] prefixes is hard to
>
> > track
>
> >
>
> >
>
> >
>
> > Marek
>
> >
>
> >
>
> >
>
> > From: David Farje <davidabelfarje at gmail.com>
>
> > Sent: Monday, May 6, 2024 12:12 PM
>
> > To: Kea user's list <kea-users at lists.isc.org>
>
> > Cc: mxhajduczenia at gmail.com; Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com>
>
> > Subject: Re: [Kea-users] [EXTERNAL] Re: Two questions regarding to kea
>
> > subnet configuration
>
> >
>
> >
>
> >
>
> > You can use client classes.  You can create a client class with only
>
> > the "name" parameter and associate the subnet with the client class.
>
> > That way the subnet object has a descriptive string you can use to
>
> > reference. See the following
>
> >
>
> >
>
> >
>
> > https://kea.readthedocs.io/en/kea-2.2.0/arm/classify.html#configuring-
>
> > subnets-with-class-information
>
> >
>
> >
>
> >
>
> > Best Regards,
>
> >
>
> > David
>
> >
>
> >
>
> >
>
> > On Mon, May 6, 2024 at 12:47 PM Xiao, Yu (CCI-Atlanta) via Kea-users <
> kea-users at lists.isc.org> wrote:
>
> >
>
> > I agree, So if we have string name for those subnets, we can use our
> tools to manipulate those information much easier and people who use them
> will understand easier. It’s better we have another  non-key ID as Marek
> suggested.
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> > Best Regards,
>
> >
>
> > Yu
>
> >
>
> >
>
> >
>
> >
>
> >
>
> > From: Kea-users <kea-users-bounces at lists.isc.org> on behalf of Marek
>
> > Hajduczenia <mxhajduczenia at gmail.com>
>
> > Date: Monday, May 6, 2024 at 12:31 PM
>
> > To: 'Kea user's list' <kea-users at lists.isc.org>
>
> > Subject: [EXTERNAL] Re: [Kea-users] Two questions regarding to kea
>
> > subnet configuration
>
> >
>
> > I understand the scaling factor and just throwing it out there – it
> would help to have perhaps non-key ID to search for, say “name” or
> something in the line of, making it a more unique value to search for.
>
> >
>
> >
>
> >
>
> > From: Kea-users <kea-users-bounces at lists.isc.org> On Behalf Of David
>
> > Farje
>
> > Sent: Monday, May 6, 2024 10:13 AM
>
> > To: Kea user's list <kea-users at lists.isc.org>
>
> > Subject: Re: [Kea-users] Two questions regarding to kea subnet
>
> > configuration
>
> >
>
> >
>
> >
>
> > Definitely string ID is nicer to manage.  The thing is, Kea seems to be
> designed to support a large number of subnets and DB backend.  In this case
> it is better to use an integer because I don't think you want a string
> based primary key on a DB table with millions of entries.
>
> >
>
> >
>
> >
>
> > Regarding your second question I believe you may find some answers here:
>
> >
>
> > https://kea.readthedocs.io/en/kea-2.4.0/arm/dhcp4-srv.html#address-all
>
> > ocation-strategies-in-dhcpv4
>
> >
>
> >
>
> >
>
> > Regards,
>
> >
>
> > David
>
> >
>
> >
>
> >
>
> >
>
> >
>
> > On Mon, May 6, 2024 at 9:21 AM <mxhajduczenia at gmail.com> wrote:
>
> >
>
> > I can confirm – the lack of support for string ID is pretty annoying
> right now, and forces me to create ranges for specific applications, which
> will not scale well in production.
>
> >
>
> >
>
> >
>
> > On the second one, I observed that it goes numerically from the bottom
> of the pool range up, so ::2, ::3, etc. In ISC, it seems to have been
> random selection from the pool, with attempt made to populate all stanzas.
> Kea seems to prefer numerically incrementing assignment, which is pretty
> bad for security purposes (if a user knows it, they can pretty much guess
> previous assignments). I preferred personally the old ISC way of doing
> things.
>
> >
>
> >
>
> >
>
> > Marek
>
> >
>
> >
>
> >
>
> > From: Kea-users <kea-users-bounces at lists.isc.org> On Behalf Of Xiao,
>
> > Yu (CCI-Atlanta) via Kea-users
>
> > Sent: Monday, May 6, 2024 6:10 AM
>
> > To: Kea user's list <kea-users at lists.isc.org>
>
> > Cc: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com>
>
> > Subject: [Kea-users] Two questions regarding to kea subnet
>
> > configuration
>
> >
>
> >
>
> >
>
> > Greetings,
>
> >
>
> >
>
> >
>
> > I have two questions related to the kea design. First, seems currently
> we can only assign numeric IDs to subnets, but for subnet management, it’s
> more convenient to use a string, is it possible to add this feature?
> Second, how kea design to distribute the ip addresses inside of the subnet
> esp ipv6 subnet? Is it totally random? Thank you.
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> >
>
> > Best Regards,
>
> >
>
> > Yu
>
> >
>
> >
>
> >
>
> > --
>
> > ISC funds the development of this software with paid support
> subscriptions. Contact us at https://www.isc.org/contact/ for more
> information.
>
> >
>
> > To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.
>
> >
>
> > Kea-users mailing list
>
> > Kea-users at lists.isc.org
>
> > https://lists.isc.org/mailman/listinfo/kea-users
>
> >
>
> > --
>
> > ISC funds the development of this software with paid support
> subscriptions. Contact us at https://www.isc.org/contact/ for more
> information.
>
> >
>
> > To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.
>
> >
>
> > Kea-users mailing list
>
> > Kea-users at lists.isc.org
>
> > https://lists.isc.org/mailman/listinfo/kea-users
>
> >
>
> > --
>
> > ISC funds the development of this software with paid support
> subscriptions. Contact us at https://www.isc.org/contact/ for more
> information.
>
> >
>
> > To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.
>
> >
>
> > Kea-users mailing list
>
> > Kea-users at lists.isc.org
>
> > https://lists.isc.org/mailman/listinfo/kea-users
>
> --
>
> ISC funds the development of this software with paid support
> subscriptions. Contact us at https://www.isc.org/contact/ for more
> information.
>
>
>
> To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.
>
>
>
> Kea-users mailing list
>
> Kea-users at lists.isc.org
>
> https://lists.isc.org/mailman/listinfo/kea-users
> --
> ISC funds the development of this software with paid support
> subscriptions. Contact us at https://www.isc.org/contact/ for more
> information.
>
> To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.
>
> Kea-users mailing list
> Kea-users at lists.isc.org
> https://lists.isc.org/mailman/listinfo/kea-users
>
