[Kea-users] [EXTERNAL] Re: Two questions regarding to kea subnet configuration

Tue May 7 12:14:04 UTC 2024

I was unclear, I am sorry. I was thinking about an option to add / select the field displayed to the right of the screen in stork right now, i.e., changing Kea Subnet ID into “comment” or something else that would be more useful. Or allow users to pick a field in there.

From: Kea-users <kea-users-bounces at lists.isc.org> On Behalf Of Darren Ankney
Sent: Tuesday, May 7, 2024 6:07 AM
To: Kea user's list <kea-users at lists.isc.org>
Subject: Re: [Kea-users] [EXTERNAL] Re: Two questions regarding to kea subnet configuration

Hi Marek,

Yes: Services -> Kea Apps -> Click on the Name you are interested in (e.g., kea at 127.0.0.1 <mailto:kea at 127.0.0.1> ) -> "Raw Configuration"

Thank you,

Darren Ankney

On Tue, May 7, 2024 at 8:00 AM <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> > wrote:

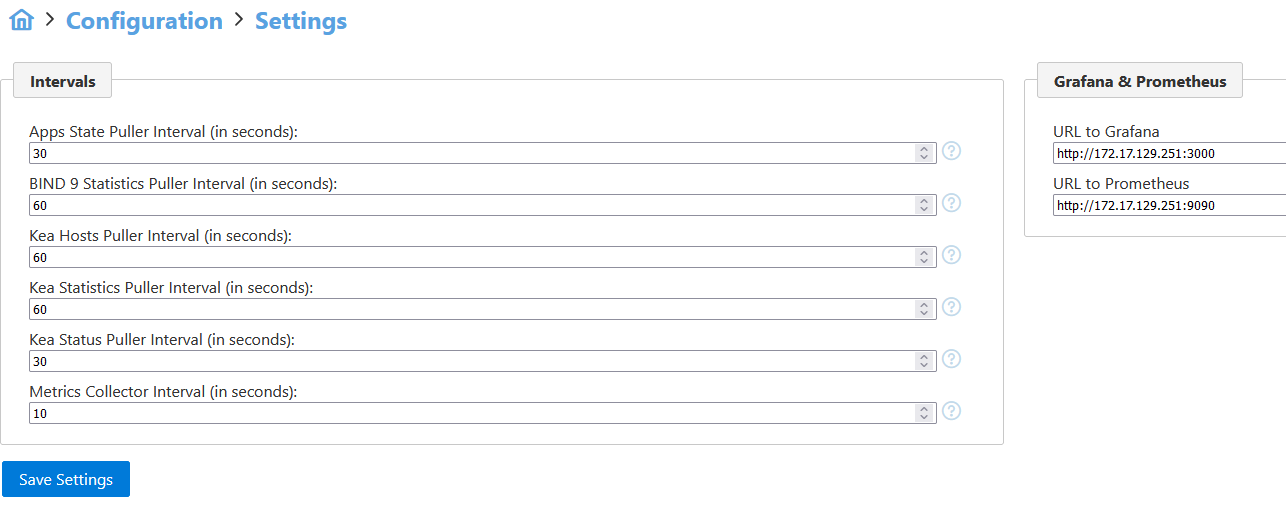

Settings are pretty underwhelming so I assume that section would be somewhere else?

-----Original Message-----
From: Kea-users <kea-users-bounces at lists.isc.org <mailto:kea-users-bounces at lists.isc.org> > On Behalf Of Darren Ankney
Sent: Tuesday, May 7, 2024 3:55 AM
To: Kea user's list <kea-users at lists.isc.org <mailto:ers at lists.isc.org> >
Subject: Re: [Kea-users] [EXTERNAL] Re: Two questions regarding to kea subnet configuration

Hi Marek,

> and just wish they were visible in Stork

They sort of are but probably not in the way you are hoping.  There is an area where you can view the raw Kea configuration.  They would be shown there.

Thank you,

Darren Ankney

On Mon, May 6, 2024 at 10:27 PM Marek Hajduczenia < <mailto:mxhajduczenia at gmail.com> mxhajduczenia at gmail.com> wrote:

>

> I did look at it but it is a highly ineffective way of doing such

> classification. I do not have much commonality between individual

> subnets and adding extra complexity of tracking them via client

> classes is not worth the effort IMHO. I will see what I can do with

> comments, and just wish they were visible in Stork, via – perhaps, a

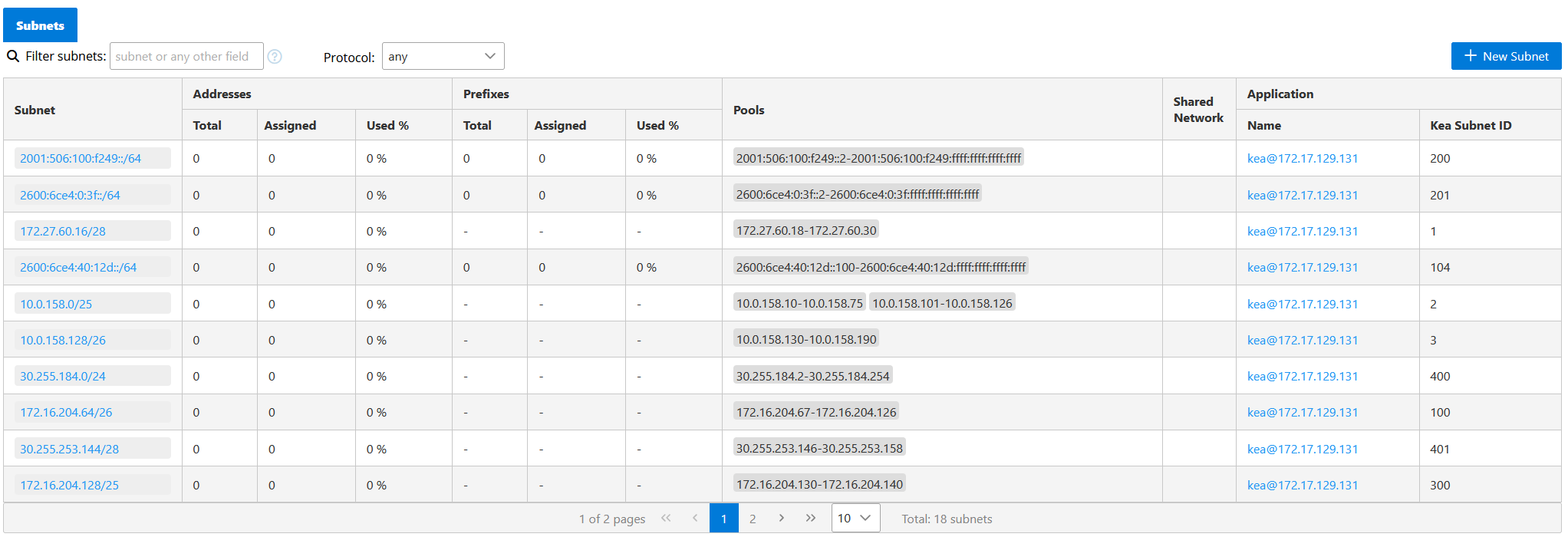

> customizable field. Right now, having several [1] prefixes is hard to

> track

>

>

>

> Marek

>

>

>

> From: David Farje < <mailto:davidabelfarje at gmail.com> davidabelfarje at gmail.com>

> Sent: Monday, May 6, 2024 12:12 PM

> To: Kea user's list < <mailto:kea-users at lists.isc.org> kea-users at lists.isc.org>

> Cc:  <mailto:mxhajduczenia at gmail.com> mxhajduczenia at gmail.com; Xiao, Yu (CCI-Atlanta) < <mailto:yu.xiao at cox.com> yu.xiao at cox.com>

> Subject: Re: [Kea-users] [EXTERNAL] Re: Two questions regarding to kea

> subnet configuration

>

>

>

> You can use client classes.  You can create a client class with only

> the "name" parameter and associate the subnet with the client class.

> That way the subnet object has a descriptive string you can use to

> reference. See the following

>

>

>

>  <https://kea.readthedocs.io/en/kea-2.2.0/arm/classify.html#configuring-> https://kea.readthedocs.io/en/kea-2.2.0/arm/classify.html#configuring-

> subnets-with-class-information

>

>

>

> Best Regards,

>

> David

>

>

>

> On Mon, May 6, 2024 at 12:47 PM Xiao, Yu (CCI-Atlanta) via Kea-users < <mailto:kea-users at lists.isc.org> kea-users at lists.isc.org> wrote:

>

> I agree, So if we have string name for those subnets, we can use our tools to manipulate those information much easier and people who use them will understand easier. It’s better we have another  non-key ID as Marek suggested.

>

>

>

>

>

>

>

> Best Regards,

>

> Yu

>

>

>

>

>

> From: Kea-users < <mailto:kea-users-bounces at lists.isc.org> kea-users-bounces at lists.isc.org> on behalf of Marek

> Hajduczenia < <mailto:mxhajduczenia at gmail.com> mxhajduczenia at gmail.com>

> Date: Monday, May 6, 2024 at 12:31 PM

> To: 'Kea user's list' < <mailto:kea-users at lists.isc.org> kea-users at lists.isc.org>

> Subject: [EXTERNAL] Re: [Kea-users] Two questions regarding to kea

> subnet configuration

>

> I understand the scaling factor and just throwing it out there – it would help to have perhaps non-key ID to search for, say “name” or something in the line of, making it a more unique value to search for.

>

>

>

> From: Kea-users < <mailto:kea-users-bounces at lists.isc.org> kea-users-bounces at lists.isc.org> On Behalf Of David

> Farje

> Sent: Monday, May 6, 2024 10:13 AM

> To: Kea user's list < <mailto:kea-users at lists.isc.org> kea-users at lists.isc.org>

> Subject: Re: [Kea-users] Two questions regarding to kea subnet

> configuration

>

>

>

> Definitely string ID is nicer to manage.  The thing is, Kea seems to be designed to support a large number of subnets and DB backend.  In this case it is better to use an integer because I don't think you want a string based primary key on a DB table with millions of entries.

>

>

>

> Regarding your second question I believe you may find some answers here:

>

>  <https://kea.readthedocs.io/en/kea-2.4.0/arm/dhcp4-srv.html#address-all> https://kea.readthedocs.io/en/kea-2.4.0/arm/dhcp4-srv.html#address-all

> ocation-strategies-in-dhcpv4

>

>

>

> Regards,

>

> David

>

>

>

>

>

> On Mon, May 6, 2024 at 9:21 AM < <mailto:mxhajduczenia at gmail.com> mxhajduczenia at gmail.com> wrote:

>

> I can confirm – the lack of support for string ID is pretty annoying right now, and forces me to create ranges for specific applications, which will not scale well in production.

>

>

>

> On the second one, I observed that it goes numerically from the bottom of the pool range up, so ::2, ::3, etc. In ISC, it seems to have been random selection from the pool, with attempt made to populate all stanzas. Kea seems to prefer numerically incrementing assignment, which is pretty bad for security purposes (if a user knows it, they can pretty much guess previous assignments). I preferred personally the old ISC way of doing things.

>

>

>

> Marek

>

>

>

> From: Kea-users < <mailto:kea-users-bounces at lists.isc.org> kea-users-bounces at lists.isc.org> On Behalf Of Xiao,

> Yu (CCI-Atlanta) via Kea-users

> Sent: Monday, May 6, 2024 6:10 AM

> To: Kea user's list < <mailto:kea-users at lists.isc.org> kea-users at lists.isc.org>

> Cc: Xiao, Yu (CCI-Atlanta) < <mailto:yu.xiao at cox.com> yu.xiao at cox.com>

> Subject: [Kea-users] Two questions regarding to kea subnet

> configuration

>

>

>

> Greetings,

>

>

>

> I have two questions related to the kea design. First, seems currently we can only assign numeric IDs to subnets, but for subnet management, it’s more convenient to use a string, is it possible to add this feature? Second, how kea design to distribute the ip addresses inside of the subnet esp ipv6 subnet? Is it totally random? Thank you.

>

>

>

>

>

>

>

>

>

> Best Regards,

>

> Yu

>

>

>

> --

> ISC funds the development of this software with paid support subscriptions. Contact us at  <https://www.isc.org/contact/> https://www.isc.org/contact/ for more information.

>

> To unsubscribe visit  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users.

>

> Kea-users mailing list

>  <mailto:Kea-users at lists.isc.org> Kea-users at lists.isc.org

>  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users

>

> --

> ISC funds the development of this software with paid support subscriptions. Contact us at  <https://www.isc.org/contact/> https://www.isc.org/contact/ for more information.

>

> To unsubscribe visit  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users.

>

> Kea-users mailing list

>  <mailto:Kea-users at lists.isc.org> Kea-users at lists.isc.org

>  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users

>

> --

> ISC funds the development of this software with paid support subscriptions. Contact us at  <https://www.isc.org/contact/> https://www.isc.org/contact/ for more information.

>

> To unsubscribe visit  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users.

>

> Kea-users mailing list

>  <mailto:Kea-users at lists.isc.org> Kea-users at lists.isc.org

>  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users

--

ISC funds the development of this software with paid support subscriptions. Contact us at  <https://www.isc.org/contact/> https://www.isc.org/contact/ for more information.

To unsubscribe visit  <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users.

Kea-users mailing list

 <mailto:Kea-users at lists.isc.org> Kea-users at lists.isc.org

 <https://lists.isc.org/mailman/listinfo/kea-users> https://lists.isc.org/mailman/listinfo/kea-users

--
ISC funds the development of this software with paid support subscriptions. Contact us at https://www.isc.org/contact/ for more information.

To unsubscribe visit https://lists.isc.org/mailman/listinfo/kea-users.

Kea-users mailing list
Kea-users at lists.isc.org <mailto:Kea-users at lists.isc.org>
https://lists.isc.org/mailman/listinfo/kea-users
