[Kea-users] [EXTERNAL] RE: No DHCP Reply sent out from kea server
Marek Hajduczenia
mxhajduczenia at gmail.com
Thu May 9 20:29:13 UTC 2024
Happy to help !
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com>
Sent: Thursday, May 9, 2024 2:10 PM
To: mxhajduczenia at gmail.com; 'Kea user's list' <kea-users at lists.isc.org>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi Marek,
Yes, your understanding is right! I configured "always-send": true to all the sub-options and now I have one RPD come online with the IPv6 address I assigned. And I re-read the document again, yes, ISC has defined two spaces in 2.4.1. Thank you for all the help!
# custom definitions
### DOCSIS space
"option-def": [
{
"space": "vendor-4491",
"name": "vendor-opts",
"code": 17,
"type": "empty",
},
{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"data": "2001:391:20:7004:10:0:252:120",
"always-send": true
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"data": "2001:391:20:7004:10:0:252:112",
"always-send": true
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"data": "0",
"always-send": true
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"data": "2001:391:20:7010:10:0:254:73",
"always-send": true
},
{
"space": "vendor-4491",
"name": "vendor-opts",
"code": 17,
"always-send": true
}
]
}
],
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >
Date: Thursday, May 9, 2024 at 3:39 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >, 'Kea user's list' <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Subject: RE: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
I do not think that is the problem, Yu
Vendor-4491 seems to be already pre-configured in Kea, at least there is some hinting on that. For other vendors, and options, I do have to build encapsulate statement into the code. For example, Option 56 is defined as follows, where a top level option 56 is defined in dhcp6 space, and then sub-option 1 is specified, with Option 56 encapsulating “ntp-server” space.
### global DHCPv6 space
{
"space": "dhcp6",
"name": "ntp-server",
"code": 56,
"type": "empty",
"encapsulate": "ntp-server"
},
{
"name": "ntp-server-ip",
"code": 1,
"space": "ntp-server",
"type": "ipv6-address",
"array": true,
"encapsulate": ""
},
The fact that you have Option 17 with 4491 space present proves my code works. What is missing is the fact that the RPD does not request any specific options, I think, so you will need to set the “always-send” flag in sub-options you want the system to send out. The way it works is pretty much: send if requested, otherwise do not.
Regards
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Sent: Thursday, May 9, 2024 1:05 PM
To: Kea user's list <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Cc: Marek Hajduczenia <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi ISC team,

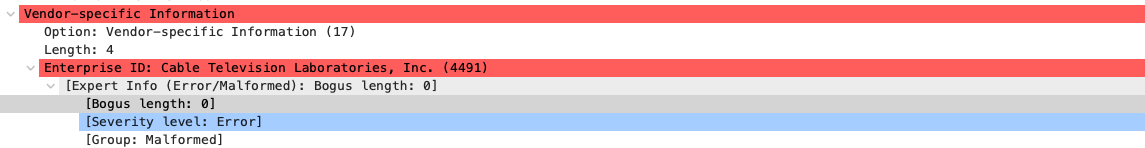

Thanks to Marek, After I added the condition below as he suggested, now I do see the kea server sent the DHCP Reply packet with the option 17 with Enterprise ID 4491. But unfortunately, there’s no sub-options under this option 17.
“always-send”: true
I studied the examples in the document from 9.2.14 to 9.2.16 and I think it’s not clear. So, it defines on Custom DHCPv6 Options, DHCPv6 Vendor-Specific Options and Nested DHCPv6 Options (Custom Option Spaces), but how about Nested DHCPv6 Options in Vendor-Specific Options?
If it is for nested DHCPv6 in Custom Option Spaces, then it is defined as follows, basically adding a new option called “container” for option 102 and using the statement // "encapsulate": "isc" // to tell other sub-options that they all under this top option . But the problem is that, in my case, option 17 is NOT a customized option, it is an option under space dhcp6, when I tried to follow the example, I got the error.
“unable to override definition of option '17' in standard option space 'dhcp6' (/etc/kea/kea-dhcp6.conf:62:7)”
Have this type of configuration tested in 2.4.1 or later?
Example on document:
"Dhcp6": {
"option-def": [
{
"name": "container",
"code": 102,
"space": "dhcp6",
"type": "empty",
"array": false,
"record-types": "",
"encapsulate": "isc"
},
...
],
...
}
{
"Dhcp6": {
"option-data": [
{
"name": "subopt1",
"code": 1,
"space": "isc",
"data": "2001:db8::abcd"
},
{
"name": "subopt2",
"code": 2,
"space": "isc",
"data": "Hello world"
},
{
"name": "container",
"code": 102,
"space": "dhcp6"
}
]
}
}
My configuration:
"option-def": [
{ <<<<<< This is the line 62 where seems to be the issue
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"type": "empty",
"encapsulate": "vendor-4491"
},
{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >
Date: Thursday, May 9, 2024 at 12:07 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Cc: Kea user's list <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
This is a generic statement telling Kea to send a vendor-4491 space in reply messages. There are examples of custom vendor spaces in Kea documentation - this is nothing specific to CableLabs
Marek
On Thu, May 9, 2024 at 10:02 AM Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> > wrote:
Hi Marek,
Thank you for the information. I am wondering if the following option defined by yourself or it is defined by kea? I don’t see its definition in the config you shared before.
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >
Date: Wednesday, May 8, 2024 at 5:56 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >, 'Kea user's list' <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
I do not use RPD in v6 mode so I cannot test that but perhaps try to add a line at the end of the new statement as follows
“always-send”: true
That will force transmission of Option 17 unconditionally if this class is matched.
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Date: Wednesday, May 8, 2024 at 2:50 PM
To: mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >, 'Kea user's list' <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi Marek,
I have added, but there’s no change. I adjusted the position of this part configuration to the top and bottom, but still no change.
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"data": "2001:391:20:7004:10:0:252:120"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"data": "2001:391:20:7004:10:0:252:112"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"name": "time-offset",
"code": 38,
"data": "0"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"data": "2001:391:20:7010:10:0:254:73"
},
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
]
}
],
Best Regards,
Yu
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Date: Wednesday, May 8, 2024 at 4:18 PM
To: mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >, 'Kea user's list' <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Thank you, Marek! Let me try!
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com <mailto:mxhajduczenia at gmail.com> >
Date: Wednesday, May 8, 2024 at 4:10 PM
To: 'Kea user's list' <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Cc: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Subject: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
You need to add
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
to your “option-data” stanza. Otherwise, the process will not insert the vendor-specific entry in Option 17.
Marek
From: Kea-users <kea-users-bounces at lists.isc.org <mailto:kea-users-bounces at lists.isc.org> > On Behalf Of Xiao, Yu (CCI-Atlanta) via Kea-users
Sent: Wednesday, May 8, 2024 1:46 PM
To: Kea user's list <kea-users at lists.isc.org <mailto:kea-users at lists.isc.org> >
Cc: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com <mailto:yu.xiao at cox.com> >
Subject: [Kea-users] No DHCP Reply sent out from kea server
Greetings,
I configured some sub-options for DHCPv6 Option 17 for RPD use. I didn’t find too detailed information regarding how to customize those sub-options under one option such as DHCPv6 option 17. Luckily, I found some examples from previous discussion email. Before I added those options, I could see the Solicit, Advertise, Request and Reply packets between the RPD and DHCP server. After the configuration, now I don’t see DHCP server responded to the Advertise packets anymore. The Advertise packet was sent. I checked the debug logs, I don’t see any reasons why the Advertise packets are not sent. There’s no errors in the debug logs.
I define those options globally while use them under the class but they are not working. Then I changed the configuration and use them under global configuration, but still no changes. I suspect my customization configuration for sub-options have some problem. But I don’t see any issue according to manual 9.2.15. DHCPv6 Vendor-Specific Options. Did I miss something in the configuration? I also attached my debug settings, not sure if there could be more detailed debug logs to help our troubleshooting process.
My kea version is 2.4.1.
Option related Config:
# custom definitions
### DOCSIS space
"option-def": [{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"csv-format": true,
"data": "2001:391:20:7004:10:0:252:120"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"csv-format": true,
"data": "2001:391:20:7004:10:0:252:112"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"csv-format": true,
"data": "0"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"csv-format": true,
"data": "2001:391:20:7010:10:0:254:73"
}
]
}
],
Debug config:
# DHCPv6 configuration ends with the next line
"loggers": [
{
"name": "kea-dhcp6",
"output_options": [
{
"output": "/tmp/kea-debug.log",
"maxver": 8,
"maxsize": 40480000,
}
],
"severity": "DEBUG",
"debuglevel": 99
}
]
Debug logs:
…
2024-05-08 14:50:14.577 INFO [kea-dhcp6.leases/27581.139777794037504] DHCP6_LEASE_ADVERT duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: lease for address 2001:391:20:7716::447 and iaid=1 will be advertised
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.leases/27581.139777794037504] DHCP6_LEASE_DATA duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: detailed lease information for iaid=1: Type: IA_NA(0)
Address: 2001:391:20:7716::447
Prefix length: 128
IAID: 1
Pref life: 300
Valid life: 400
Cltt: 1715193821
DUID: 00:03:00:01:c4:b2:39:ba:56:98
Hardware addr: c4:b2:39:ba:56:98
Subnet ID: 1
Pool ID: 0
State: expired-reclaimed
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.packets/27581.139777794037504] DHCP6_PACKET_SEND duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: trying to send packet ADVERTISE (type 2) from [2001:391:20:c012::240]:547 to [2001:391:20:7716::1]:547 on interface ens18
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.packets/27581.139777794037504] DHCP6_RESPONSE_DATA responding with packet type 2 data is localAddr=[2001:391:20:c012::240]:547 remoteAddr=[2001:391:20:7716::1]:547
msgtype=2(ADVERTISE), transid=0x206da9
type=00001, len=00010: 00:03:00:01:c4:b2:39:ba:56:98
type=00002, len=00014: 00:01:00:01:2d:c5:0b:41:b6:0f:80:c4:26:56
type=00003(IA_NA), len=00040: iaid=1, t1=100, t2=200,
options:
type=00005(IAADDR), len=00024: address=2001:391:20:7716::447, preferred-lft=300, valid-lft=400
type=39(CLIENT_FQDN), flags: (N=1, O=0, S=0), domain-name='rpdc4b239ba5698.' (full)
1 relay(s):
relay[0]: msg-type=13(RELAY_REPLY), hop-count=0,
link-address=2001:391:20:7716::1, peer-address=fe80::c6b2:39ff:feba:5698, 0 option(s)
…
Best Regards,
Yu
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.isc.org/pipermail/kea-users/attachments/20240509/96db47cf/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image001.png
Type: image/png
Size: 27198 bytes
Desc: not available
URL: <https://lists.isc.org/pipermail/kea-users/attachments/20240509/96db47cf/attachment-0001.png>
More information about the Kea-users
mailing list
