I think I still have a confusion, according to the section 9.2.16, if we want to define a nested DHCPv6 options/Custom Option Spaces, then we should do as below. First, we define our new option name and code under the space of dhcp6, then we put the new space name under ‘encapsulate’ section for those sub-options to use.
But for this vendor-4491, I know it’s a default defined option, but shouldn’t it follow the same definition methodology as well? This could cause some confusion.
"Dhcp6": {
"option-def": [
{
"name": "container",
"code": 102,
"space": "dhcp6",
"type": "empty",
"array": false,
"record-types": "",
"encapsulate": "isc"
},
...
],
...
}
"Dhcp6": {
"option-def": [
{
"name": "subopt1",
"code": 1,
"space": "isc",
"type": "ipv6-address",
"record-types": "",
"array": false,
"encapsulate": ""
},
{
"name": "subopt2",
"code": 2,
"space": "isc",
"type": "string",
"record-types": "",
"array": false,
"encapsulate": ""
}
],
...
}
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com>
Date: Thursday, May 9, 2024 at 4:29 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com>, 'Kea user's list' <kea-users at lists.isc.org>
Subject: RE: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Happy to help !
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com>
Sent: Thursday, May 9, 2024 2:10 PM
To: mxhajduczenia at gmail.com; 'Kea user's list' <kea-users at lists.isc.org>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi Marek,
Yes, your understanding is right! I configured "always-send": true to all the sub-options and now I have one RPD come online with the IPv6 address I assigned. And I re-read the document again, yes, ISC has defined two spaces in 2.4.1. Thank you for all the help!
# custom definitions
### DOCSIS space
"option-def": [
{
"space": "vendor-4491",
"name": "vendor-opts",
"code": 17,
"type": "empty",
},
{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"data": "2001:391:20:7004:10:0:252:120",
"always-send": true
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"data": "2001:391:20:7004:10:0:252:112",
"always-send": true
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"data": "0",
"always-send": true
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"data": "2001:391:20:7010:10:0:254:73",
"always-send": true
},
{
"space": "vendor-4491",
"name": "vendor-opts",
"code": 17,
"always-send": true
}
]
}
],
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>
Date: Thursday, May 9, 2024 at 3:39 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>, 'Kea user's list' <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Subject: RE: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
I do not think that is the problem, Yu
Vendor-4491 seems to be already pre-configured in Kea, at least there is some hinting on that. For other vendors, and options, I do have to build encapsulate statement into the code. For example, Option 56 is defined as follows, where a top level option 56 is defined in dhcp6 space, and then sub-option 1 is specified, with Option 56 encapsulating “ntp-server” space.
### global DHCPv6 space
{
"space": "dhcp6",
"name": "ntp-server",
"code": 56,
"type": "empty",
"encapsulate": "ntp-server"
},
{
"name": "ntp-server-ip",
"code": 1,
"space": "ntp-server",
"type": "ipv6-address",
"array": true,
"encapsulate": ""
},
The fact that you have Option 17 with 4491 space present proves my code works. What is missing is the fact that the RPD does not request any specific options, I think, so you will need to set the “always-send” flag in sub-options you want the system to send out. The way it works is pretty much: send if requested, otherwise do not.
Regards
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Sent: Thursday, May 9, 2024 1:05 PM
To: Kea user's list <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Cc: Marek Hajduczenia <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi ISC team,
Thanks to Marek, After I added the condition below as he suggested, now I do see the kea server sent the DHCP Reply packet with the option 17 with Enterprise ID 4491. But unfortunately, there’s no sub-options under this option 17.
“always-send”: true

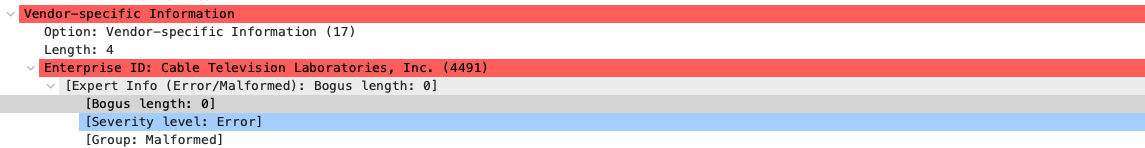

[cid:image001.png at 01DAA21D.439E4C90]
I studied the examples in the document from 9.2.14 to 9.2.16 and I think it’s not clear. So, it defines on Custom DHCPv6 Options, DHCPv6 Vendor-Specific Options and Nested DHCPv6 Options (Custom Option Spaces), but how about Nested DHCPv6 Options in Vendor-Specific Options?
If it is for nested DHCPv6 in Custom Option Spaces, then it is defined as follows, basically adding a new option called “container” for option 102 and using the statement // "encapsulate": "isc" // to tell other sub-options that they all under this top option . But the problem is that, in my case, option 17 is NOT a customized option, it is an option under space dhcp6, when I tried to follow the example, I got the error.
“unable to override definition of option '17' in standard option space 'dhcp6' (/etc/kea/kea-dhcp6.conf:62:7)”
Have this type of configuration tested in 2.4.1 or later?
Example on document:
"Dhcp6": {
"option-def": [
{
"name": "container",
"code": 102,
"space": "dhcp6",
"type": "empty",
"array": false,
"record-types": "",
"encapsulate": "isc"
},
...
],
...
}
{
"Dhcp6": {
"option-data": [
{
"name": "subopt1",
"code": 1,
"space": "isc",
"data": "2001:db8::abcd"
},
{
"name": "subopt2",
"code": 2,
"space": "isc",
"data": "Hello world"
},
{
"name": "container",
"code": 102,
"space": "dhcp6"
}
]
}
}
My configuration:
"option-def": [
{ <<<<<< This is the line 62 where seems to be the issue
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"type": "empty",
"encapsulate": "vendor-4491"
},
{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>
Date: Thursday, May 9, 2024 at 12:07 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Cc: Kea user's list <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
This is a generic statement telling Kea to send a vendor-4491 space in reply messages. There are examples of custom vendor spaces in Kea documentation - this is nothing specific to CableLabs
Marek
On Thu, May 9, 2024 at 10:02 AM Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>> wrote:
Hi Marek,
Thank you for the information. I am wondering if the following option defined by yourself or it is defined by kea? I don’t see its definition in the config you shared before.
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>
Date: Wednesday, May 8, 2024 at 5:56 PM
To: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>, 'Kea user's list' <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
I do not use RPD in v6 mode so I cannot test that but perhaps try to add a line at the end of the new statement as follows
“always-send”: true
That will force transmission of Option 17 unconditionally if this class is matched.
Marek
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Date: Wednesday, May 8, 2024 at 2:50 PM
To: mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com> <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>, 'Kea user's list' <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Hi Marek,
I have added, but there’s no change. I adjusted the position of this part configuration to the top and bottom, but still no change.
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"data": "2001:391:20:7004:10:0:252:120"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"data": "2001:391:20:7004:10:0:252:112"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"name": "time-offset",
"code": 38,
"data": "0"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"data": "2001:391:20:7010:10:0:254:73"
},
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
]
}
],
Best Regards,
Yu
From: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Date: Wednesday, May 8, 2024 at 4:18 PM
To: mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com> <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>, 'Kea user's list' <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Subject: Re: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
Thank you, Marek! Let me try!
Best Regards,
Yu
From: Marek Hajduczenia <mxhajduczenia at gmail.com<mailto:mxhajduczenia at gmail.com>>
Date: Wednesday, May 8, 2024 at 4:10 PM
To: 'Kea user's list' <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Cc: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Subject: [EXTERNAL] RE: [Kea-users] No DHCP Reply sent out from kea server
You need to add
{
"space": "dhcp6",
"name": "vendor-opts",
"code": 17,
"data": "4491"
}
to your “option-data” stanza. Otherwise, the process will not insert the vendor-specific entry in Option 17.
Marek
From: Kea-users <kea-users-bounces at lists.isc.org<mailto:kea-users-bounces at lists.isc.org>> On Behalf Of Xiao, Yu (CCI-Atlanta) via Kea-users
Sent: Wednesday, May 8, 2024 1:46 PM
To: Kea user's list <kea-users at lists.isc.org<mailto:kea-users at lists.isc.org>>
Cc: Xiao, Yu (CCI-Atlanta) <yu.xiao at cox.com<mailto:yu.xiao at cox.com>>
Subject: [Kea-users] No DHCP Reply sent out from kea server
Greetings,
I configured some sub-options for DHCPv6 Option 17 for RPD use. I didn’t find too detailed information regarding how to customize those sub-options under one option such as DHCPv6 option 17. Luckily, I found some examples from previous discussion email. Before I added those options, I could see the Solicit, Advertise, Request and Reply packets between the RPD and DHCP server. After the configuration, now I don’t see DHCP server responded to the Advertise packets anymore. The Advertise packet was sent. I checked the debug logs, I don’t see any reasons why the Advertise packets are not sent. There’s no errors in the debug logs.
I define those options globally while use them under the class but they are not working. Then I changed the configuration and use them under global configuration, but still no changes. I suspect my customization configuration for sub-options have some problem. But I don’t see any issue according to manual 9.2.15. DHCPv6 Vendor-Specific Options. Did I miss something in the configuration? I also attached my debug settings, not sure if there could be more detailed debug logs to help our troubleshooting process.
My kea version is 2.4.1.
Option related Config:
# custom definitions
### DOCSIS space
"option-def": [{
"space": "vendor-4491",
"name": "device-type",
"code": 2,
"type": "string"
},
{
"space": "vendor-4491",
"name": "tftp-servers",
"code": 32,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "config-file",
"code": 33,
"type": "string"
},
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"array": true,
"type": "ipv6-address"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"type": "int32"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"array": true,
"type": "ipv6-address"
},
],
"client-classes": [
{
"name": "RPD",
"test": "substring(option[17].option[2].hex,0,3) == 'RPD'",
"option-data": [
{
"space": "vendor-4491",
"name": "syslog-servers",
"code": 34,
"csv-format": true,
"data": "2001:391:20:7004:10:0:252:120"
},
{
"space": "vendor-4491",
"name": "time-servers",
"code": 37,
"csv-format": true,
"data": "2001:391:20:7004:10:0:252:112"
},
{
"space": "vendor-4491",
"name": "time-offset",
"code": 38,
"csv-format": true,
"data": "0"
},
{
"space": "vendor-4491",
"name": "ccap-cores",
"code": 61,
"csv-format": true,
"data": "2001:391:20:7010:10:0:254:73"
}
]
}
],
Debug config:
# DHCPv6 configuration ends with the next line
"loggers": [
{
"name": "kea-dhcp6",
"output_options": [
{
"output": "/tmp/kea-debug.log",
"maxver": 8,
"maxsize": 40480000,
}
],
"severity": "DEBUG",
"debuglevel": 99
}
]
Debug logs:
…
2024-05-08 14:50:14.577 INFO [kea-dhcp6.leases/27581.139777794037504] DHCP6_LEASE_ADVERT duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: lease for address 2001:391:20:7716::447 and iaid=1 will be advertised
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.leases/27581.139777794037504] DHCP6_LEASE_DATA duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: detailed lease information for iaid=1: Type: IA_NA(0)
Address: 2001:391:20:7716::447
Prefix length: 128
IAID: 1
Pref life: 300
Valid life: 400
Cltt: 1715193821
DUID: 00:03:00:01:c4:b2:39:ba:56:98
Hardware addr: c4:b2:39:ba:56:98
Subnet ID: 1
Pool ID: 0
State: expired-reclaimed
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.packets/27581.139777794037504] DHCP6_PACKET_SEND duid=[00:03:00:01:c4:b2:39:ba:56:98], tid=0x206da9: trying to send packet ADVERTISE (type 2) from [2001:391:20:c012::240]:547 to [2001:391:20:7716::1]:547 on interface ens18
2024-05-08 14:50:14.577 DEBUG [kea-dhcp6.packets/27581.139777794037504] DHCP6_RESPONSE_DATA responding with packet type 2 data is localAddr=[2001:391:20:c012::240]:547 remoteAddr=[2001:391:20:7716::1]:547
msgtype=2(ADVERTISE), transid=0x206da9
type=00001, len=00010: 00:03:00:01:c4:b2:39:ba:56:98
type=00002, len=00014: 00:01:00:01:2d:c5:0b:41:b6:0f:80:c4:26:56
type=00003(IA_NA), len=00040: iaid=1, t1=100, t2=200,
options:
type=00005(IAADDR), len=00024: address=2001:391:20:7716::447, preferred-lft=300, valid-lft=400
type=39(CLIENT_FQDN), flags: (N=1, O=0, S=0), domain-name='rpdc4b239ba5698.' (full)
1 relay(s):
relay[0]: msg-type=13(RELAY_REPLY), hop-count=0,
link-address=2001:391:20:7716::1, peer-address=fe80::c6b2:39ff:feba:5698, 0 option(s)
…
Best Regards,
Yu
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://lists.isc.org/pipermail/kea-users/attachments/20240510/77a2df16/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image001.png
Type: image/png
Size: 27198 bytes
Desc: image001.png
URL: <https://lists.isc.org/pipermail/kea-users/attachments/20240510/77a2df16/attachment-0001.png>
More information about the Kea-users
mailing list
